Applications: Pumps、Medical equipment、Industrial automation Rated Power Range76～160W
Basic Performance
Winding Type | Star connection |
Hall Effect Angle | 120 degree |
Radial Play | 0.025mm(450g) |
Axial Play | 0.025mm(4000g) |
Max Radial force | 20mm from flange |
Max Axial force | 45N |
Insulation Class | B |
Dielectric Strength | 600VAC/1S |
Insulation Resistance | 100MΩ，500VDC |
Parameter
| Model | Frame Size(mm) | Rated Power(W) | Rated Voltage(VDC) | Rated Torque(Nm) | Rated Currect(A) | Rated Speed(rpm) | Length(mm) | Phases | Download |
|---|---|---|---|---|---|---|---|---|---|
| 80BLS300L31 | 80 | 300 | 310 | 1.1 | 1.3 | 3000 | 95 | 3 |  |

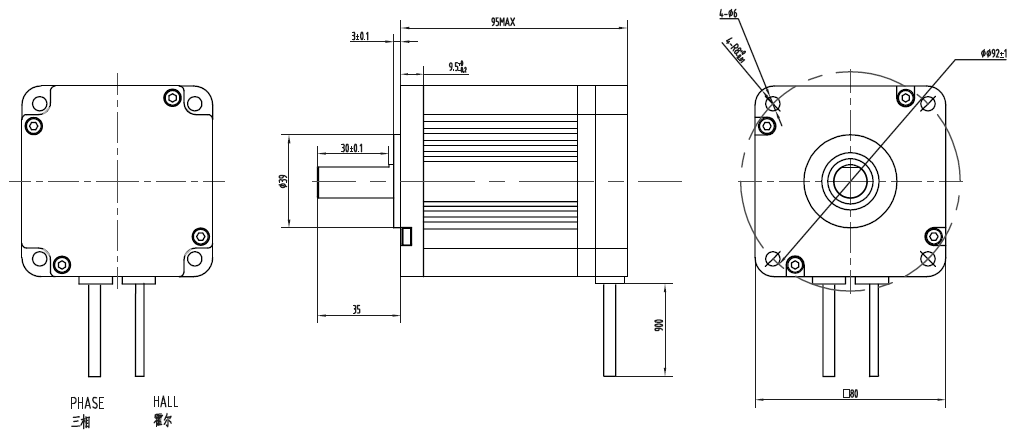

● Dimensions
