Applications: Monitor equipment、Medical equipment、Industrial automation Length range: 24-48mm
Basic Performance
Accuracy | Step angle | ±5% |
Resistance | ±10% | |
Inductance | ±20% | |
Insulation class | B | |
Duty type | S1 | |
Dielectrical strength | 500 VAC/1 KHz/1 mA/1 s | |
Insulation resistance | 100 MΩ/500V DC | |
Parameter
| Model | Step Angle(Deg) | Voltage(V) | Current(A) | Resistance(Ω) | Inductance(mH) | Holding torque(Kg.cm) | Detent torque(Kg.cm) | Length(mm) | Weight(Kg) | Phases | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20HD14L020 | 1.8 | 4.4 | 0.2 | 22 | 6 | 0.1 | 0.05 | 24 | 0.04 | 2 |  |
| 20HD34L020 | 1.8 | 4.8 | 0.2 | 24 | 8 | 0.15 | 0.05 | 28 | 0.05 | 2 | |
| 20HD54L060 | 1.8 | 3.9 | 0.6 | 6.5 | 2.2 | 0.2 | 0.1 | 33 | 0.07 | 2 | |
| 20HD74L060 | 1.8 | 6 | 0.6 | 10 | 5.5 | 0.4 | 0.15 | 38 | 0.08 | 2 | |

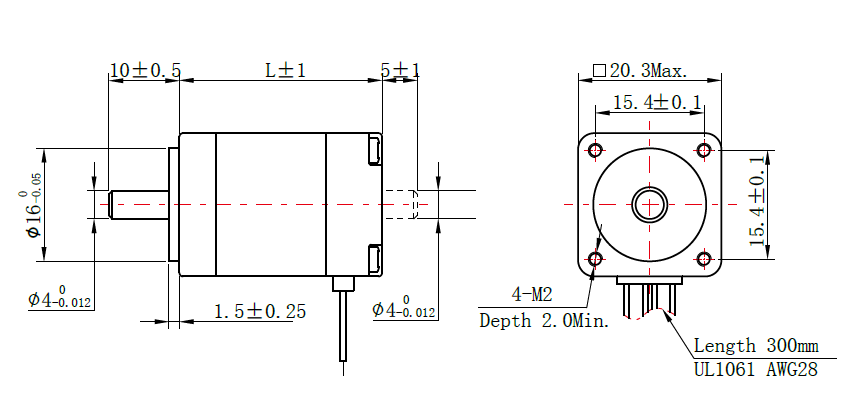

● Dimensions
● Wiring Diagram
