Applications: Monitor equipment、Medical equipment、Industrial automation Length range: 20-52mm
Basic Performance
Accuracy | Step angle | ±5% |
Resistance | ±10% | |
Inductance | ±20% | |
Insulation class | B | |
Duty type | S1 | |
Dielectrical strength | 500 VAC/1 KHz/1 mA/1 s | |
Insulation resistance | 100 MΩ/500V DC | |
Parameter
| Model | Step Angle(Deg) | Voltage(V) | Current(A) | Resistance(Ω) | Inductance(mH) | Holding torque(Kg.cm) | Detent torque(Kg.cm) | Length(mm) | Weight(Kg) | Phases | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 39HD34L100 | 1.8 | 3.6 | 1 | 3.6 | 3.4 | 0.7 | 0.10 | 26 | 0.15 | 2 |  |
| 39HD44L050 | 1.8 | 3.25 | 0.5 | 6.5 | 8.5 | 1.6 | 0.15 | 29 | 0.17 | 2 | |
| 39HD64L060 | 1.8 | 11.22 | 0.6 | 18.7 | 18 | 1.8 | 0.15 | 34 | 0.18 | 2 | |
| 39HD94L100 | 1.8 | 3.96 | 1.2 | 3.3 | 2.3 | 2.5 | 0.4 | 45 | 0.20 | 2 | |
| 39HD04L150 | 1.8 | 4.2 | 1.5 | 2.8 | 6.5 | 4.8 | 0.45 | 52 | 0.23 | 2 | |
● Dimensions

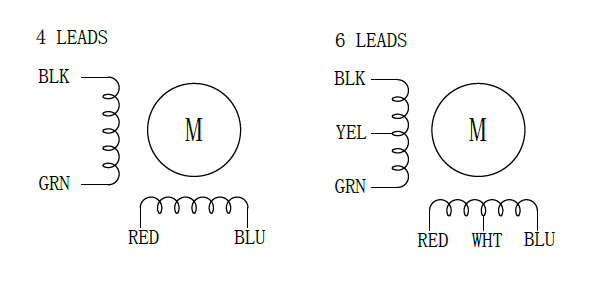

● Wiring Diagram
