Applications: medical equipment、semiconductor handling、Valve control, X-Y tables、 hand held instruments Length range: 30-60mm
Basic Performance
Accuracy | Step angle | ±5% |
Resistance | ±10% | |
Inductance | ±20% | |
Insulation class | B | |
Duty type | S1 | |
Dielectrical strength | 500 VAC/1 KHz/1 mA/1 s | |
Insulation resistance | 100 MΩ/500V DC | |
Parameter
| Model | Step Angle(Deg) | Voltage(V) | Current(A) | Resistance(Ω) | Screw diameter(mm) | Screw lead(mm) | Screw length(mm) | Length(mm) | Weight(Kg) | Download |
|---|---|---|---|---|---|---|---|---|---|---|
| 42ZD74L160-L2E-200 | 1.8 | 11.2 | 1.6 | 7 | 8 | 2 | 200 | 48 | 0.28 |  |
| 42ZD54L160-L8E-150 | 1.8 | 6 | 1 | 6 | 8 | 8 | 150 | 40 | 0.25 | |
| 42ZD54L060-L1E-50 | 1.8 | 12 | 0.6 | 20 | 8 | 1 | 50 | 40 | 0.25 | |
| 42ZD74L120-N20E-120 | 1.8 | 3.6 | 1.2 | 3 | 10 | 20 | 120 | 48 | 0.28 | |
| 42ZD74L210-L16E-136 | 1.8 | 2.1 | 2.1 | 1 | 8 | 16 | 136 | 48 | 0.28 | |
| 42ZD34L100-I3E-150 | 1.8 | 4.2 | 1.0 | 4.2 | 6.5 | 3 | 150 | 34 | 0.23 | |
| 42ZD94L210-L8E-35 | 1.8 | 3.15 | 2.1 | 1.5 | 8 | 8 | 35 | 60 | 0.5 | |
| 42ZD94L210-L8H-25 | 1.8 | 3.15 | 2.1 | 1.5 | 8 | 8 | 25.4 | 60 | 0.55 | |
| 42ZD34L100-H635E-90 | 1.8 | 3.8 | 1.0 | 3.8 | 6.35 | 6.35 | 90 | 34 | 0.28 | |
| 42ZD74L200-L2.5B-150S | 1.8 | 24 | 2.0 | 1.325 | 8 | 2.5 | 150 | 80 | 0.6 | |

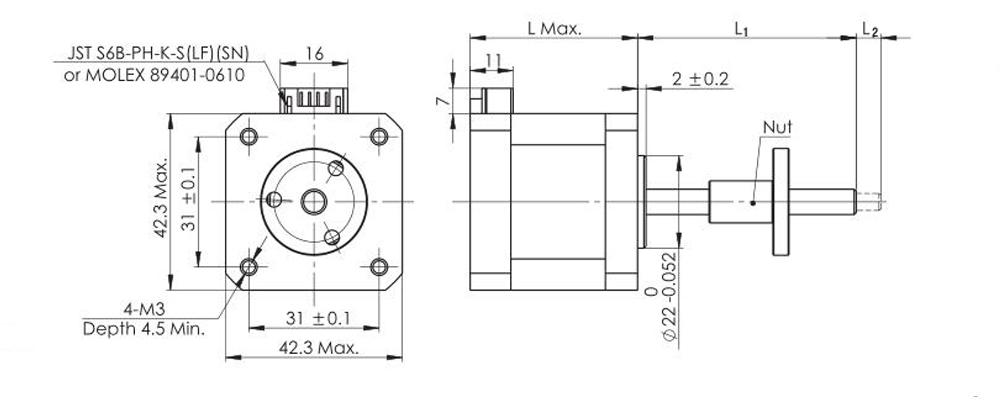

● Dimensions
● Wiring Diagram
